RECDrive

RECDrive allows free movement of your Universal Robots robot without using the Teach Pendant. RECDrive easily integrates with the robot flange, enabling precise point capturing as well as manual or automatic trajectory recording through a convenient side button, enhancing the interaction between the operator and the robot.

manually guided robot movement

point and trajectory capture

manual mode and automatic mode

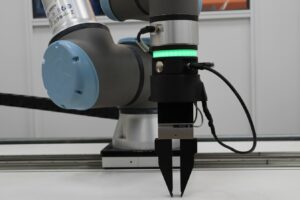

COMPATIBILITY WITH GRIPPERS

RECDRIVE: MOVEMENT WITHOUT LIMITS

Compatible with the Universal Robots e-Series range: UR3, UR5, UR10, UR16, UR20, and UR30

Manual and automatic modes, allowing you to capture points as well as continuously record the trajectory

Transfer files bidirectionally between your robot and your computer.

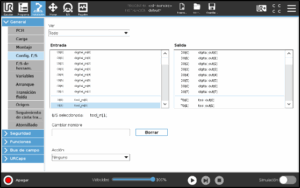

Fully configure the software by setting your password, port, access level, etc.

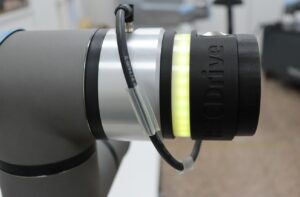

Easy to mount between the robot flange and the gripper

RECDRIVE is equipped with a side button for free movement.

Lightweight hardware that does not add significant load to the robot arm

M8 connectors, ensuring a stable connection

Software available in multiple languages: Spanish, English, and German

RECDrive is a URCap approved by Universal Robots, ensuring the highest standards of quality and safety in collaborative robotics

Hardware and software

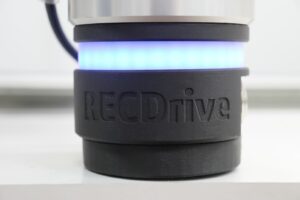

The hardware of RECDrive stands out for its lightweight and compact design, allowing seamless integration without obstacles or interference in the robot’s operations. It features an integrated side button that enables users to start or stop trajectory capture and save specific points during manual programming, facilitating intuitive and efficient operation.

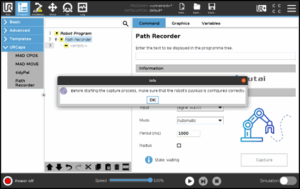

Software

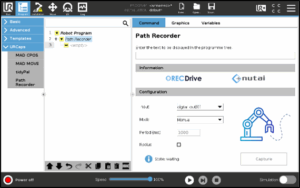

Manual mode or point-to-point trajectory recording

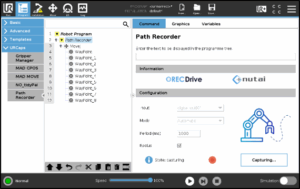

Automatic mode or continuous trajectory capture

Use in free movement

hardware

Dimensions: W=85mm, L=85mm, H=46.5mm

Weight: 212 grams

Side button

HOW DOES recdive WORK?

At NUTAI, we understand the importance of a clear and efficient implementation process for any industrial software tool. That’s why we’ve designed RECDrive to be intuitive and easy to install, ensuring our customers can start enjoying the benefits of advanced collaborative robotics without delay.
